Non-Destructive Terrain Editor

I am not a good artist. One of the reason 3D is a bit more attractive to me is that I can usually build something rather than draw it or sculpt it. Digital art gives you an “undo” button, but being able to undo or redo things out of order makes it even easier to experiment.

Most of the terrain tools out there have a destructive workflow. Using various brushes, you write directly to a heightmap. Including the concept of “layers” can help here, but I want something closer to modeling.

What I’ve built is a way to take Node3Ds tagged as ShapeInstances and compose them onto the heightmap. Their y position is their height, and their y scale is the steepness of the shape. Other transform properties work normally (except for rotation on x and z).

A couple of custom properties are roundness so that rectancular shapes don’t have sharp corners, and a shape ID. The currently supported shapes are recatangle, circle and ramp. In the future, I’d like to get rid of ramp and instead support rotation on the horizontal axes for creating slopes.

SDFs

#

Signed distance functions are an easy way to describe shapes using math. This could be in either 2D or 3D. Inigo Quilez has a nice library of functions for different shapes on his website. They have all sorts of uses in graphics; you can render them directly with a ray marcherwith them direclty, they can be used in global illumination, and they are probably in many other ways.

The SDFs of each shape are composed onto a single heightmap in a compute shader that looks roughly like this:

layout(set = 0, binding = 0, std430) buffer ParamsBuffer {
    int n_shapes;
    int resolution;
    float world_size;
    vec2 world_offset;
}
params;

layout(set = 0, binding = 2, std430) buffer ShapesBuffer {
    ShapeData data[MAX_SHAPES];
} shapes;


layout(local_size_x = 32, local_size_y = 32, local_size_z = 1) in;
void main() {
    vec2 uv = gl_GlobalInvocationID.xy;
    float height = -999999999.0;
    for (uint i = 0; i < params.n_shapes; i++) {
        ShapeData shape = shapes.data[i];
        shape.position = world_to_shader(shape.position);
        shape.size *= shader_scale();
        shape.steepness *= shader_scale();
        float shapeHeight = heightmapFromDistance(shape, uv, sdf(shape, uv));
        if (shapeHeight >= height) {
            height = shapeHeight;
            maxInfluence = int(i);
        }
    }
    int heightIdx = toIndex(uv);
    heightmap.data[heightIdx] = max(height, 0.0) / MAX_HEIGHT;
}

Clipmap

#

One difficult issue with large terrains is stitching the borders of chunks. Instead of dealing with that, we can use a wandering clipmap. A massive plane that has more subdivisions towards the center, and fewer on the edges gives us some basic LOD. As the player moves through the world, we peridically recenter the clipmap at their position so the stuff they can see closely has higher detail.

This technique works especially well with the way we generate the heightmap. We don’t even need to create chunks of the heightmap, or be concerned with artifacts due to sampling along the borders of two chunks. Instead, we can just center the heightmap’s world space offset along with the clipmap, and only include the Node3D shapes that would be visible at this offset. To avoid regenerating the heightmap everytime we move the clipmap, we can generate the heightmap to be 2 times as big in world space. When we move outside some margin, the heightmap gets recentered.

Cursor Selection

#

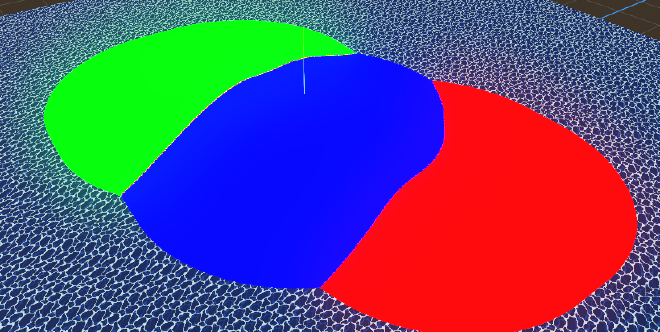

In the editor, a Node3D with no collisions is a bit annoying to select in the tree rather than visually. Writing the shape index that is actually influencing the heightmap at some point lets us give the heighmap its own collider, and based on the xz coordinate, we can sample that “influence map” to select the right shape.

Splat Mapping

#

It would be pretty boring to only have the grass, cliff and beach textures based on normals and height. Paths, grass, plazas and other interesting details should be available.

With a few modifications, we can use the very same code for terrain generation for splatmap generation as well. Using these primitive shapes is pretty unwieldy , so in the future I’d like to be able to use the Path3D node to create paths and roads on the splatmap, as well as a free form drawing brush. Maybe noise texture overlays as well with masking.
